Valley Fire/DeBaca County 2021-12-04

Valley Fire/DeBaca County 2021-12-04

Valley Fire/DeBaca County 2021-12-04
Location: Fort Sumner, NM

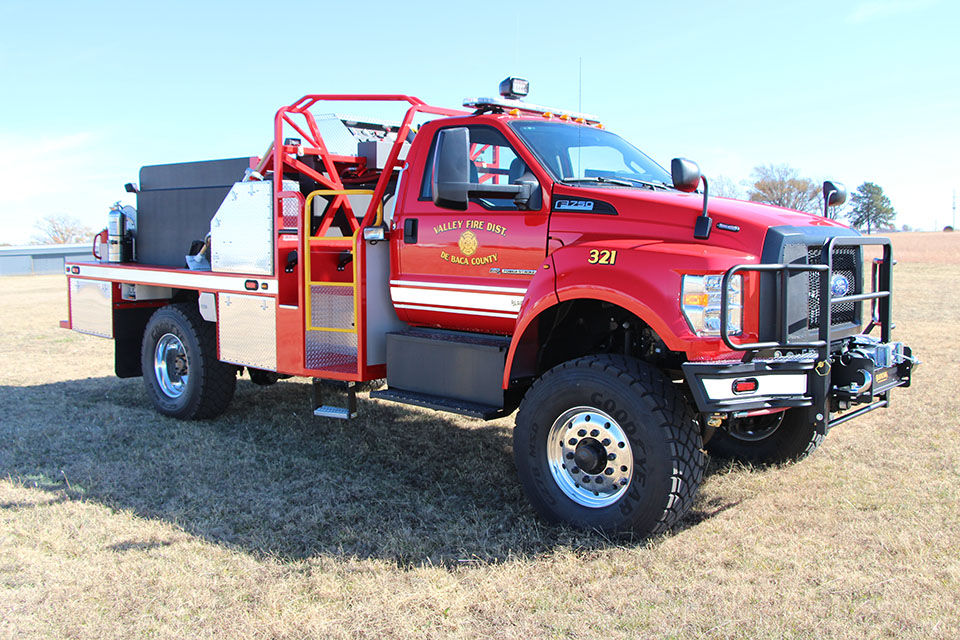

Model: B-8 Chaparral Xtreme Brush Truck
Chassis: 2021 Ford F750, Reg Cab, 108" cab to axle, Manual Regen,
6.7L Powerstroke 330HP, Dual HD Alternators,Mirrors Power and Heated, Marmi 4WD Conversion, Air Ride Driver Seat, 35,300 GVWR
Delivered: 2021-12-04
Serial #: 2008RX09

FEATURES:

  • Body, Welded
  • Material, Premium Structural and Sheet Steel
  • Crosswalk, BATROPS, which complies with SAE J1194 in the seated or standing positions in two (2) "Pump and Roll Fire Attack Operational Areas"
  • Compartment, Tank, Recessed, for a low center of gravity
  • Crosslay, Transverse, 10", in crosswalk area
  • Rear Bumper, 3" x 10" x 1/4" Steel Tube, attached to chassis frame
  • Receiver Tube, Rear Bumper
  • Safety Gate, Chest Saddle, Crosswalk
  • Platform, Light Bar, Removable, with brush protection structure
  • Harness, Body, 4 Point with three (3) retractors per side, six (6) total retractors
  • Tank UPGRADE, Polypropylene, 1000 gallon, with sump
  • Water Level Indicator, Tankvision
  • Pump UPGRADE, Hale HPX275 with Vanguard 35 hp engine
  • Pump Primer, Hand-Operated
  • Manifold, Discharge, and Steel Plumbing
  • Discharge, Preconnected, 1-1/2" Crosslay
  • Discharge, Preconnected, 1" Whipline in crosswalk
  • Suction, 2-1/2" Pump to Draft, with full port valve
  • Suction, 3" Tank to Pump, with full port valve
  • Pump Panel, Custom, with flip-up lid, located in Crosswalk
  • Trim Package, Bright Aluminum Tread in Crosswalk and Rear Deck
  • Trim Package, Stainless Steel Chip Rails
  • Coating Package, Superliner, on crosslay and rear bumper
  • Coating Package, Corashield, on underbody
  • Mud Flap, behind rear tire
  • Light Bar, Whelen Justice LED (NFPA compliant)
  • Emergency Light, Whelen Linear LED 500 Series, Rear
  • Stop-Turn/Tail Light, LED
  • Work Light, on Body, LED (add 2 for front bumper)
  • Work Light, on Pump Panel, LED
  • Wig Wag Package
  • Siren and Speaker, with Hands Free controls
  • Back-up Alarm
  • Enclosure, Dash-Mounted, for Siren and Radio mounting, allows 3rd person to ride in chassis
  • Enclosure, Electrical Panel, with labels and color-coded wiring located inside the chassis
  • Dedicated Ground to the Battery
  • Master Disconnect, Ignition-operated
  • Electrical System, Body
  • Electrical System, Chassis
  • Reflective Striping, 4" on Body and Rear Bumper
  • Reflective Striping, Triple Stripe, on chassis doors
  • Body Preparation, Sandblast and Prime
  • Paint, Polyurethane, to meet fire department's specifications



OPTIONS:

  • Fire Extinguisher, 5 lb. Dry Chemical, with 40-B:C and mount bracket
  • First Aid Kit
  • Compartment Storage, Pump Panel
  • Lower Storage Box, Left Front
  • Lower Storage Box, Right Front
  • Lower Storage Boxes, Rear (set of 2)
  • Under Roll Bar Box, Left
  • Under Roll Bar Box, Right
  • Front Bumper Grille Guard, Custom Flip-Down
  • Winch, 12,000 lb. Ramsey, Mounted in Front Bumper
  • Front Bumper Sweeps, Two (2) Corner Nozzles and Two (2) Center Nozzles
  • Tow Loop, Rear - Fixed (set of 2)
  • Step, Manual Pull-Down
  • Lettering on Doors
  • Emergency Light, 500 Series LED (set of 10)
  • Wildland Fireline Light Package, two (2) lights on light bar platform and 2 lights on rear
  • Go Light Spot Light, Mounted, with Dash-Mounted Remote (NFPA)
  • Auto Eject & Battery Maintainer
  • Customer-Supplied Radio and Antenna Installation
  • Hose Reel, 1" 100'
  • SCBA Bracket, Mounted in Compartment
  • Spare SCBA Bottle Storage, Mounted in Wheel Well
  • Traffic Control Kit, Mounted (includes 10 cones, 2 hand held signs and 2 reflective vests)
  • Spanner Wrench Set, Mounted
  • Pike Pole, Mounted
  • Flathead Shovel with Composite Handle, Mounted
  • Spade Head Shovel with Composite Handle, Mounted
  • 6 lb. Pick Head Axe with Composite Handle, Mounted
  • McLeod Fire Tool with Wood Handle, Mounted
  • Haligan Tool, Mounted
  • 2-1/2 gal. Water Fire Extinguisher w/ Mounting Bracket
  • Rubber Mallet, Mounted
  • Vulcan Flashlight, Mounted
  • Drip Torch, Mounted
  • 20V Reciprocating Saw Kit, Mounted
  • 1-3/4” Double-jacketed 50 ft Hose, green
  • 2-1/2” Double-jacketed 50 ft Hose, blue
  • 2-1/2” 10 ft Clear Hard Suction (NFPA 1906)
  • 2-1/2” Barrel Strainer for Hard Suction (NFPA 1906)
  • 2-1/2” Double Male Adapter
  • 2-1/2” Double Female Adapter
  • 1030 Akron Forestry Nozzle
  • 1702 Akron Turbojet Nozzle with Pistol Grip
  • 1720 Akron Turbojet Nozzle with  Pistol Grip
  • Nozzle Bracket for 1702 Nozzle
  • BEAST Kit, Mounted (External/Interior Attack System)
  • Special Features:
  • Rear Underbed Storage
  • 12ft. Extension Ladder, Mounted
  • Hose Bed with Two (2) Dividers for 1 1/2" and 2 1/2"
  • Folding Wheel Choc w/Holder, for larger wheels (set of 2)
  • Discharge, 1 1/2"
  • Discharge, 2 1/2" Rear
  • "Super Single Wheels, Tire and Adjust to Fit
  • (Polished Aluminum Wheels, Goodyear 425 G278MSD Tires)"
  • Semi-Automatic AED
  • SCBA, Scott Air-Pak 75
  • SCBA, Cylinder 30 min. 2216 psi
  • Chevron Striping Rear Bumper & Bed Rail
  • Electric Tire Monitoring System, with Chassis-mounted Display (for 4 wheels)
  • Ember/Moisture Separator for air filter
