Savoy VFD 2025-05-16

Savoy VFD 2025-05-16

Location: Savoy, TX 75479

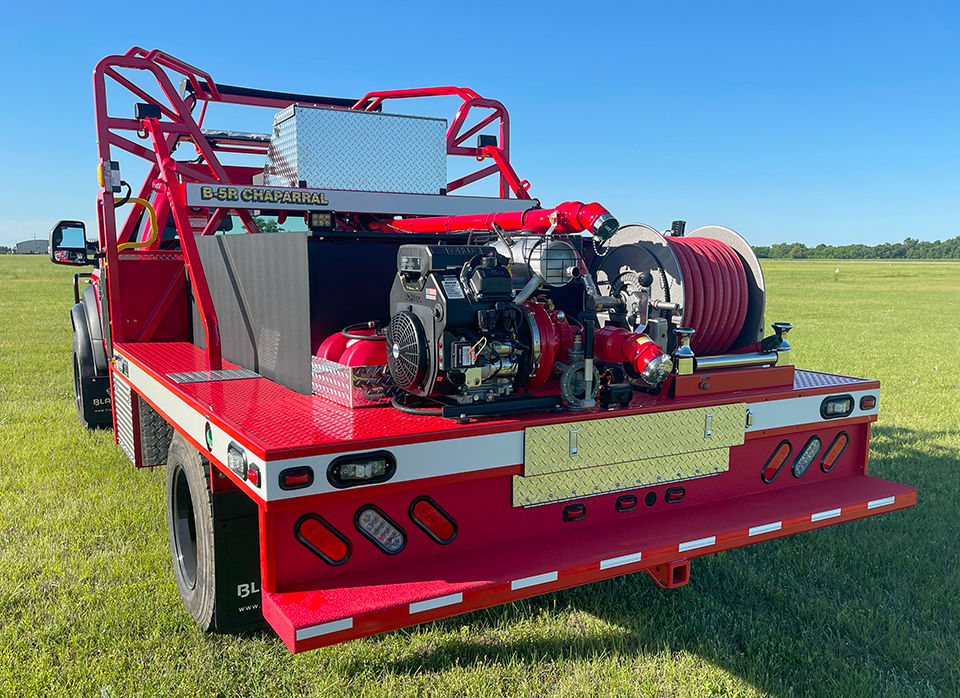

Model: B-5 Chaparral Xtreme Brush Truck
Chassis: 2025 Ford F550 Reg. Cab, Diesel, 19,500GVW
Delivered: 2025-05-16
Serial #: 2505RX03
FEATURES:
  • Body, Welded
  • Material, Premium Structural and Sheet Steel
  • Crosswalk, BATROPS, which complies with SAE J1194 in the seated or standing positions in two (2) "Pump and Roll Fire Attack Operational Areas"
  • Compartment, Tank, Recessed, for a low center of gravity
  • Crosslay, Transverse, 7", in crosswalk area
  • Rear Bumper, 3" x 10" x 1/4" Steel Tube, attached to chassis frame
  • Receiver Tube, Rear Bumper
  • Safety Gate, Chest Saddle, Crosswalk
  • Platform, Light Bar, Removable, with brush protection structure
  • Harness, Body, 4 Point with four (4) retractors per side, eight (8) total retractors
  • Tank, Polypropylene, 500 gallon, with sump
  • Water Level Indicator, Tankvision
  • Pump Primer, Hand-Operated
  • Manifold, Discharge, and Steel Plumbing
  • Discharge, Preconnected, 1-1/2" Crosslay
  • Discharge, Preconnected, 1" Whipline in crosswalk
  • Tank Fill, 1"
  • Suction, 2-1/2" Pump to Draft, with full port valve
  • Suction, 3" Tank to Pump, with full port valve
  • Pump Panel, Custom, with flip-up lid, located in Crosswalk
  • Trim Package, Bright Aluminum Tread in Crosswalk and Rear Deck
  • Trim Package, Stainless Steel Chip Rails
  • Coating Package, Superliner, on crosslay and rear bumper
  • Coating Package, Corashield, on underbody
  • Mud Flap, behind rear tire
  • Light Bar, Whelen Justice LED (NFPA compliant)
  • Emergency Light, Whelen Linear LED 500 Series, Rear
  • Stop-Turn/Tail Light, LED
  • Work Light, on Body, LED (add 2 for front bumper)
  • Work Light, on Pump Panel, LED
  • Wig Wag Package
  • Siren and Speaker, with Hands Free controls
  • Back-up Alarm
  • Enclosure, Dash-Mounted, for Radio mounting, allows 3rd person to ride in chassis
  • Enclosure, Electrical Panel, with labels and color-coded wiring located inside the chassis
  • Dedicated Ground to the Battery
  • Master Disconnect, Ignition-operated
  • Electrical System, Body
  • Electrical System, Chassis
  • Reflective Striping, 4" on Body and Rear Bumper (White)
  • Reflective Striping, Triple Stripe, on chassis doors (White)
  • Body Preparation, Sandblast and Prime
  • Paint, Polyurethane, to meet fire department's specifications
  • Tourniquet, First Aid Medical Emergency Survival
  • "Pump, Rowe RPM2 with Kohler 19hp EFI engine (175 GPM @ 135 PSI, 200 GPM @ 100 PSI, 300 GPM @ 25 PSI)"

OPTIONS:
  • Water Level Indicator, Four Light, One Location will include Mini Slave
  • Water Level Indicator, Four Light, Additional Locations
  • Discharge UPGRADE, Preconnected, for two (2) 1" Whiplines in crosswalk
  • Discharge, 2-1/2" Rear (Jomar)
  • Lower Storage Box (8.8ft3), Left Front (not available with generator)
  • Lower Storage Box (8.8ft3), Right Front
  • "Center Rear Underbed Storage w/Tools
  • - includes: storage area for BLESS poles, two (2) Fire Rakes, two (2) Trash Hooks, a Wrecking Bar, a Flat-head Shovel, a Pike Pole and a Spade Shovel"
  • End Covers, Crosslay (set of 2)
  • Front Bumper Grille Guard (you keep OEM bumper)
  • Skid Plate, Front
  • Xtreme Offroad Package, including Super Singles tires (Toyo M608z 285/70R19.5), wheels, extreme body modification, Abrasive Road Package, nerf bars with front mud flaps and Superliner coating on headache rack and front of body.   (Blanchat keeps take off tires & wheels, less than 1000 miles)
  • Emergency, Light 500 V-Series 180 DEG~RED - OVAL - CLEAR LENS (Set of 10)
  • Wildland Fireline Light Package, two (2) LED lights on light bar platform and two (2) LED lights on rear
  • Light, Brow 50-inch - Installed above Light Bar within Roll-Over Protection Structure
  • Auto Eject & Battery Maintainer
  • Hose Reel, 1" 100' (24-23-24 LB)
